Jardín infantil el Recreo

Location: Bogotá, Cundinamarca, Colombia

Year: 2018

Area (m2): 6.494

Directors: Jaime Eduardo Cabal – Jorge Emilio Buitrago

Design team: Juan Portillo – Milena Jaramillo – David Carmona – Jose David Goméz – Astrid Gonzalez – Pamela Perez – Daniel Veenstra – Leonardo Correa – Jose David Gomez – Jenyfer Botero – Sebastian Morillo

Client: Secretaria de Educación Bogotá

Description:

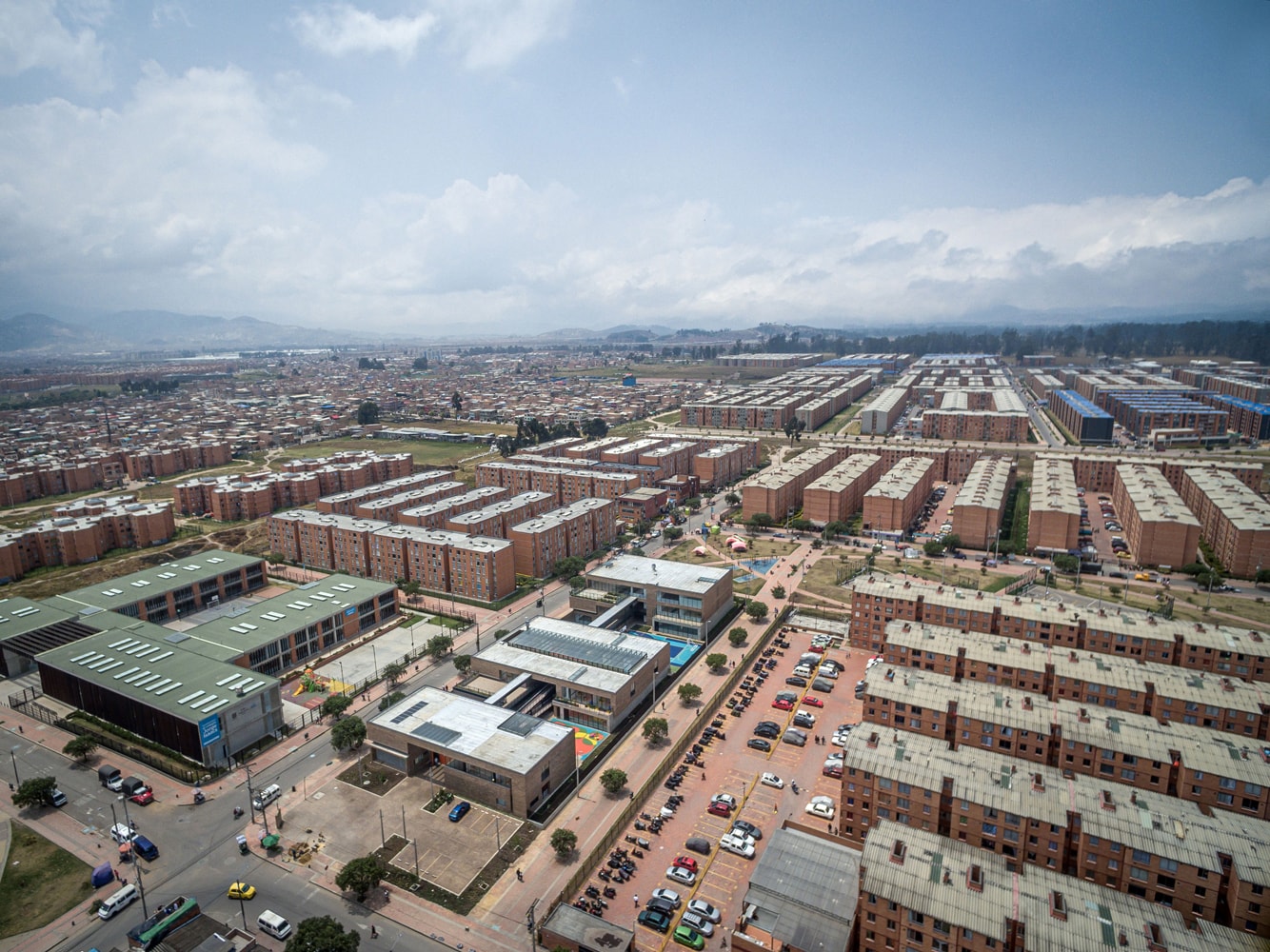

The kindergarten and social welfare centre “”El Recreo”” is an important piece within a new urban educational centrality, in the town of Bosa, south of Bogotá.

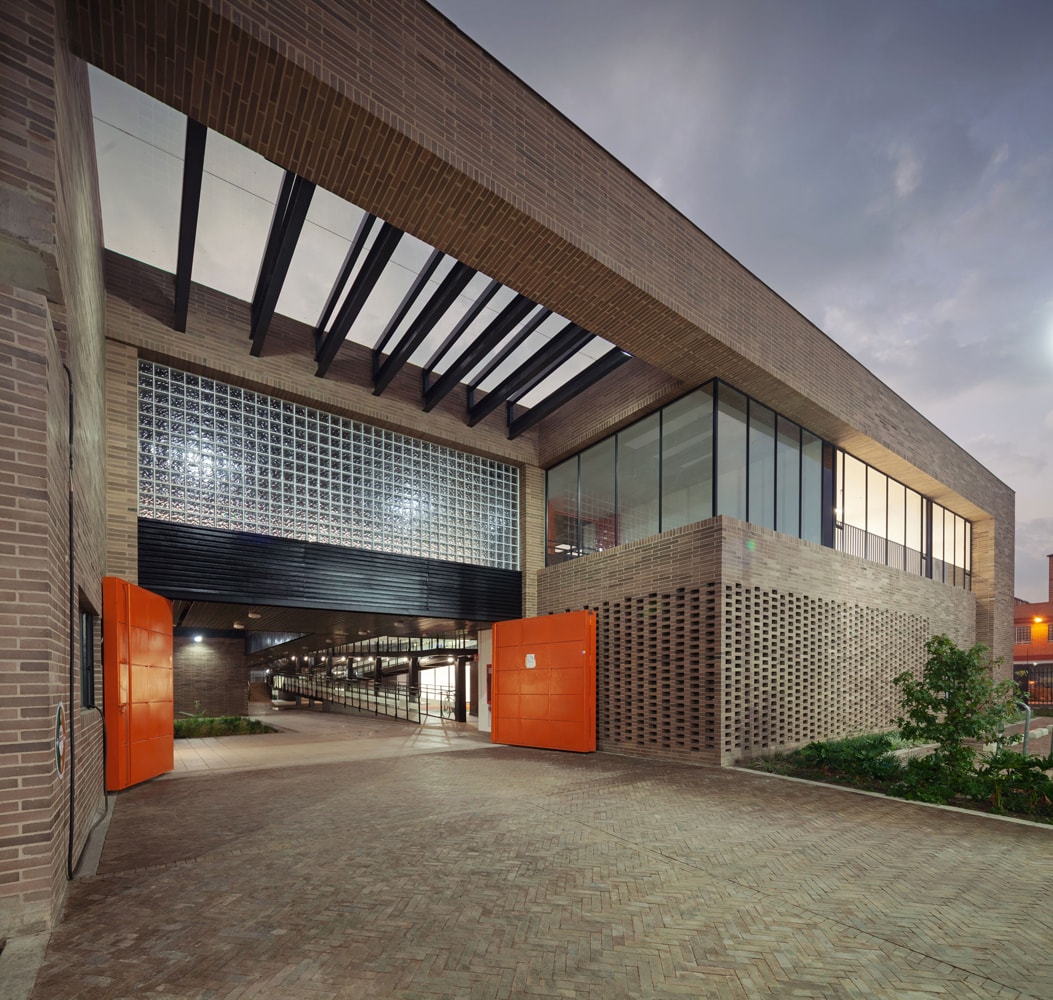

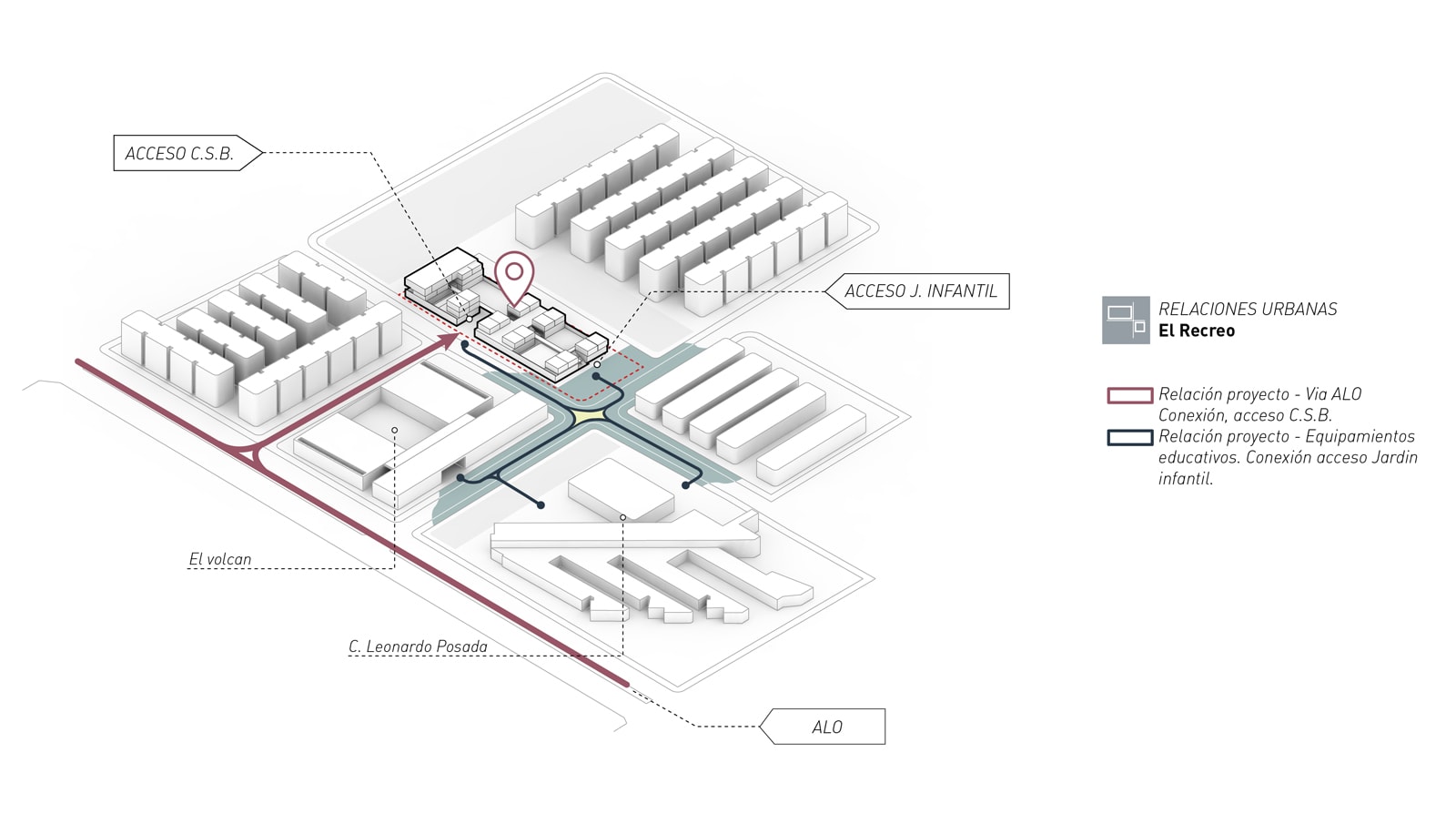

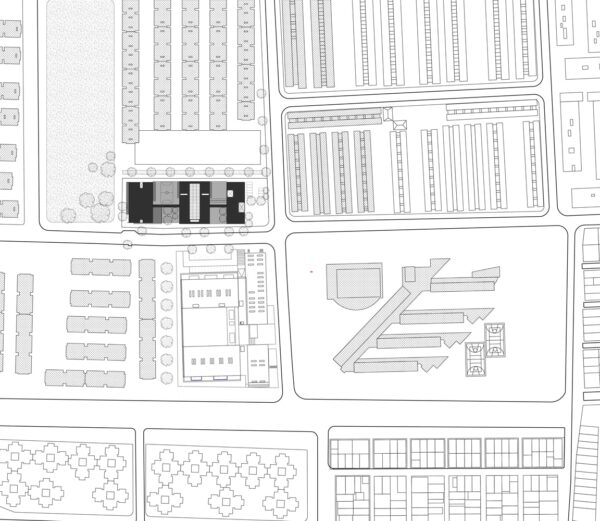

It is located on an elongated corner lot, with a discontinuous morphology. It is articulated to the urban fabric through a small square that serves as a prelude to the main access of the garden and as a civic space for the use of the community, integrating it into its context and configuring it as a learning and meeting centre.

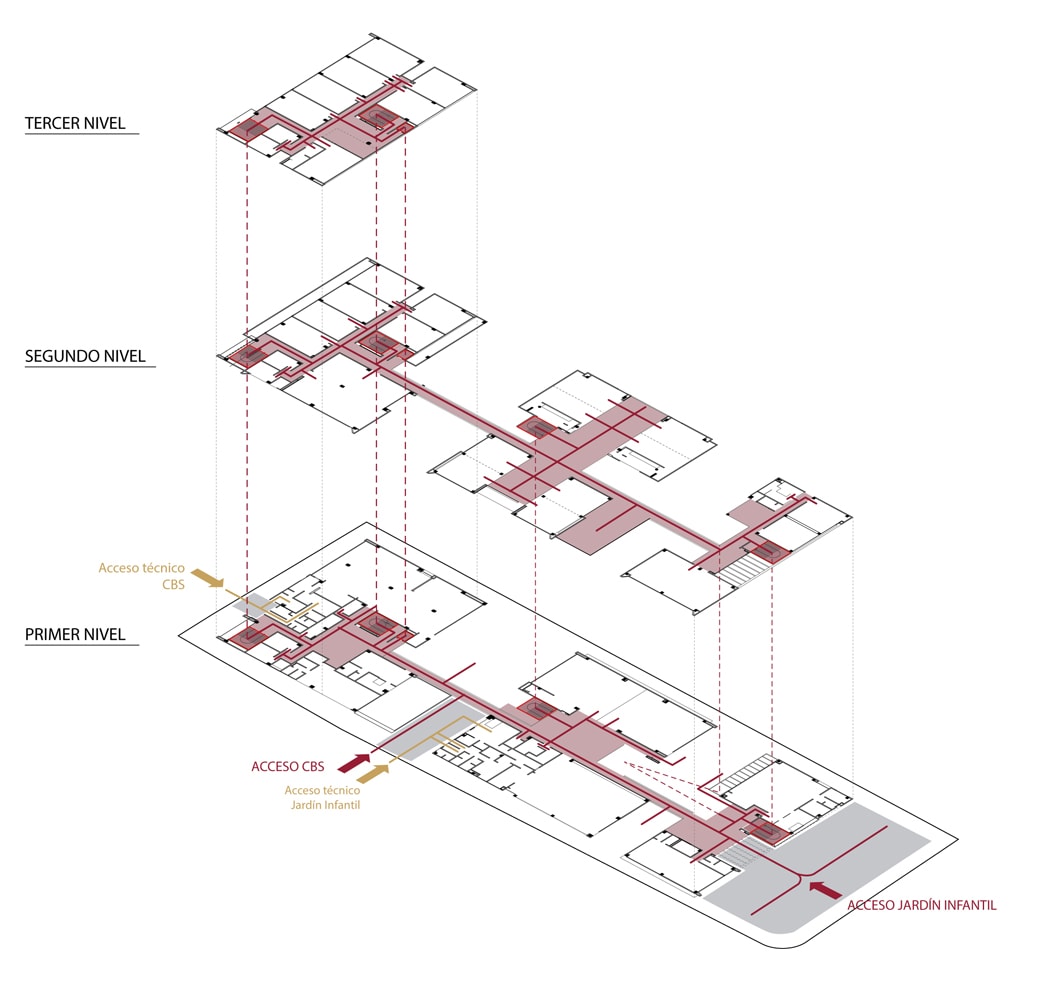

The project is arranged from a central circulation axis that transversely crosses the blocks formed by the kindergarten and the social welfare centre. This structure spatially connects and articulates learning spaces that support training activities.

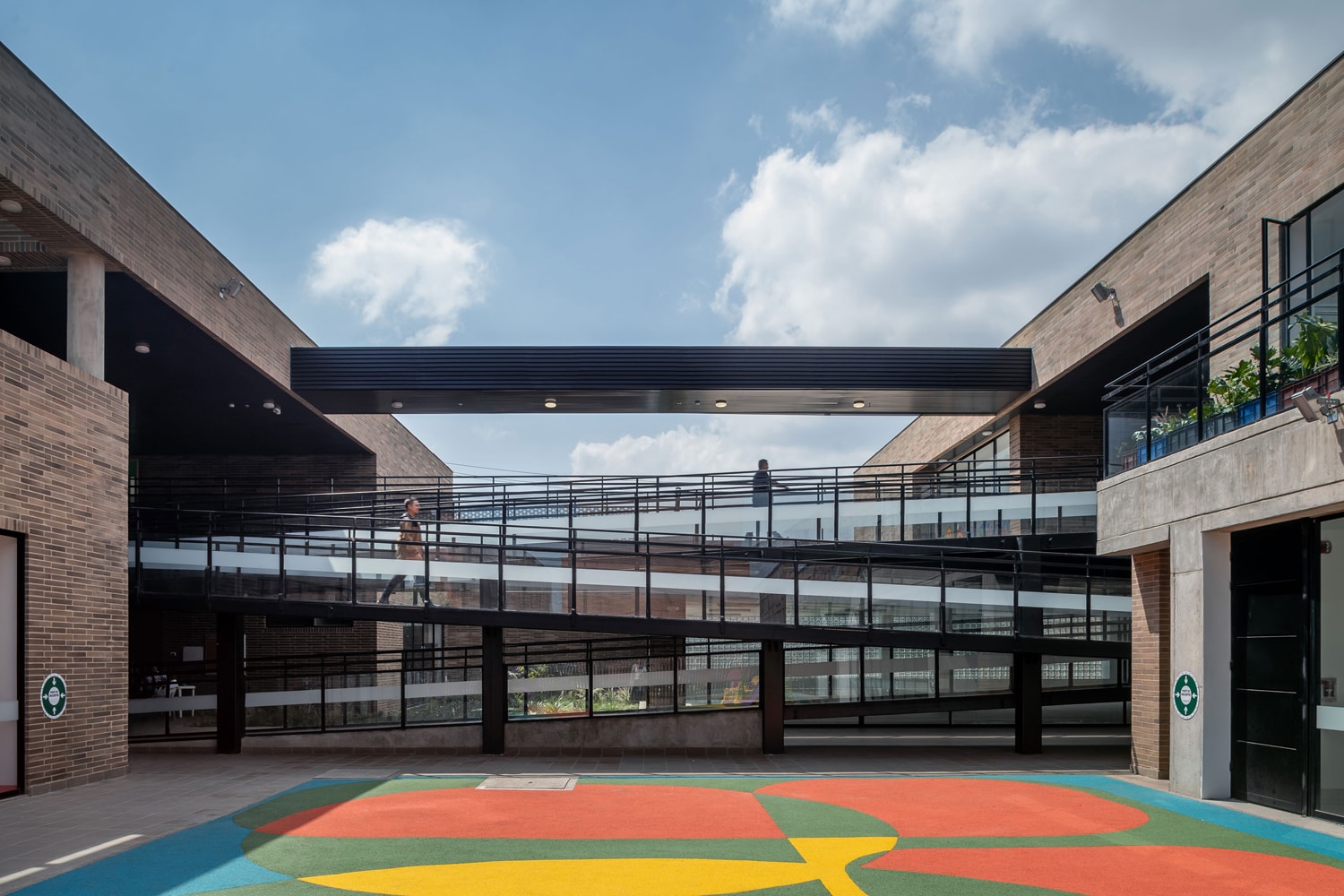

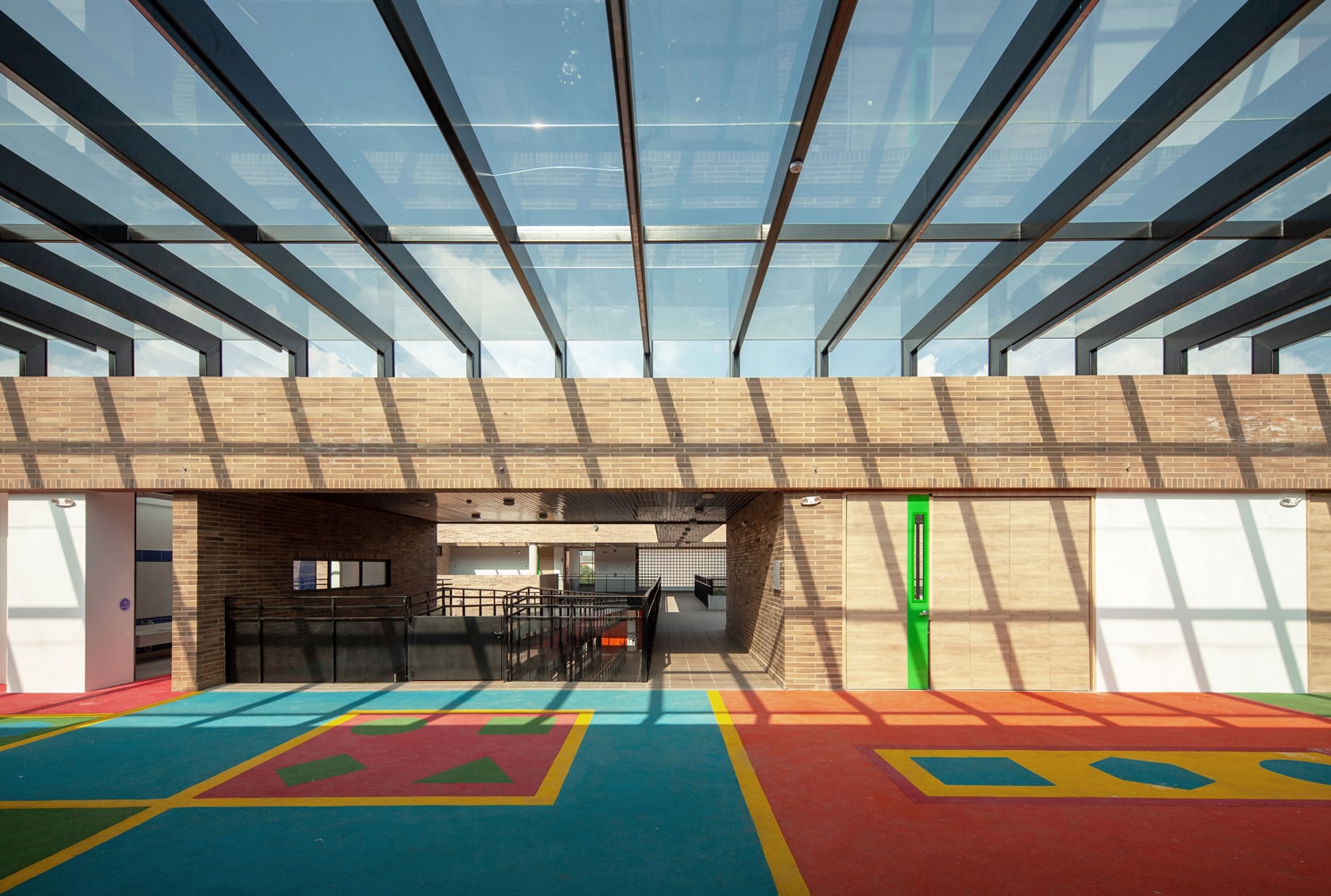

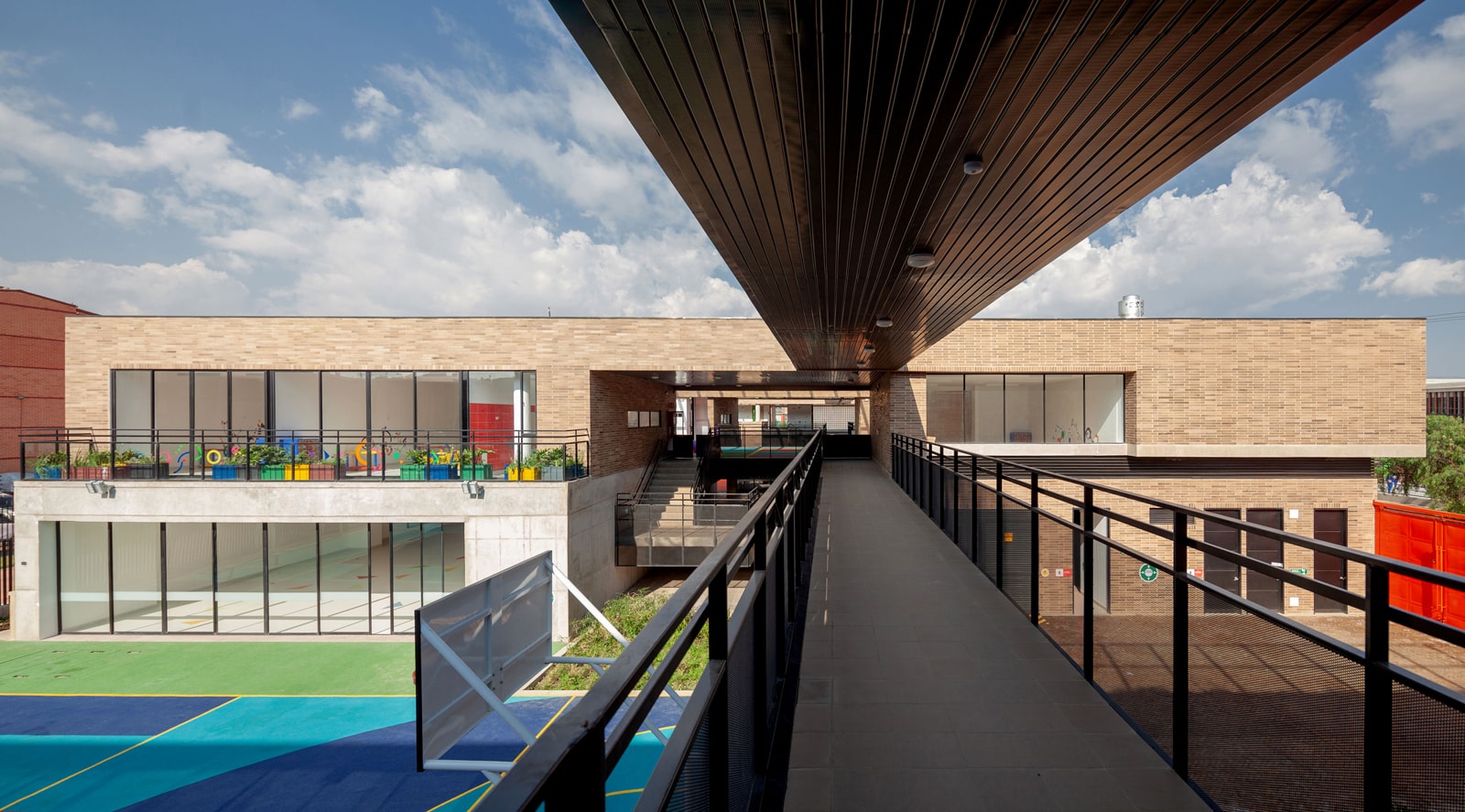

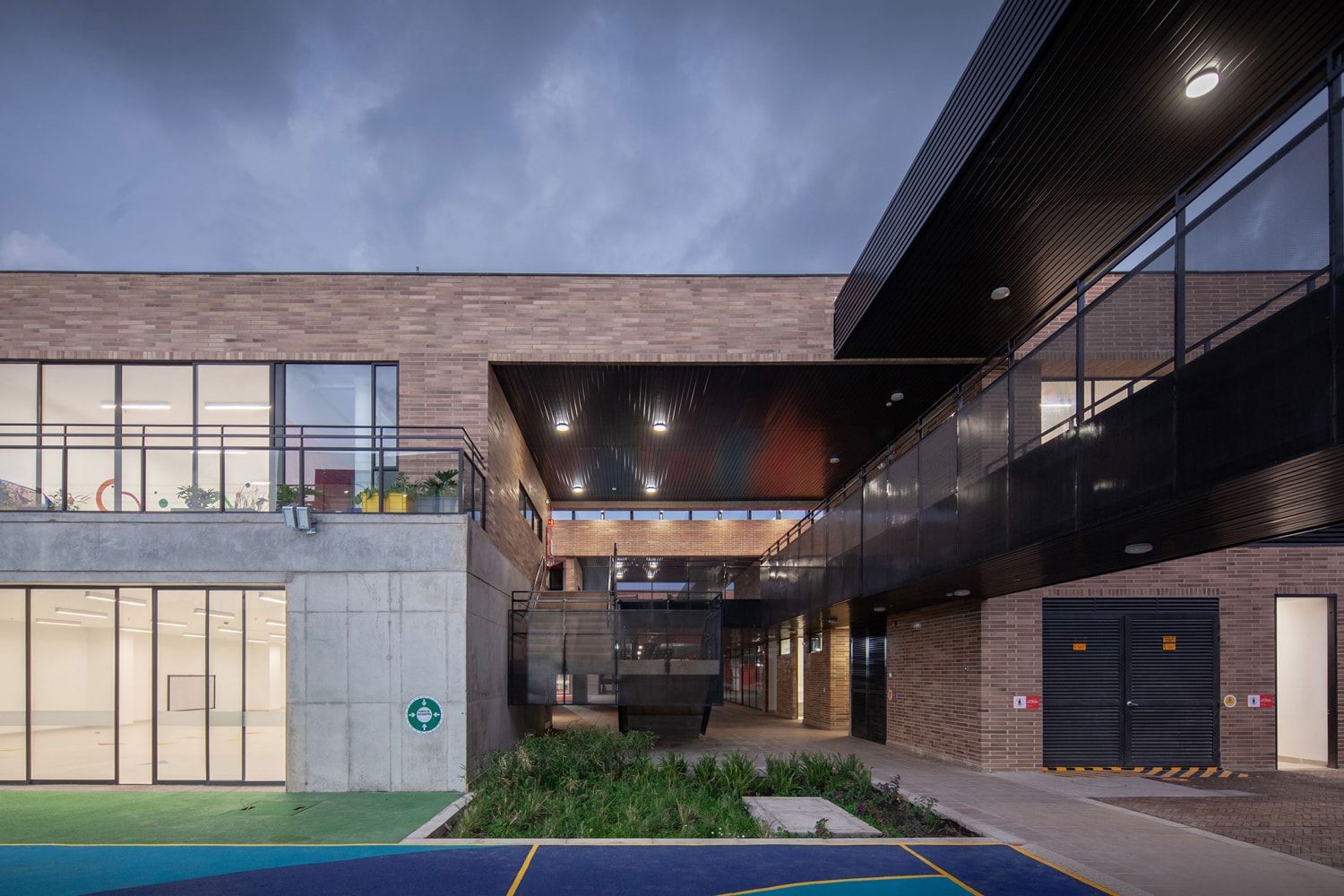

The circulation is carried out through a succession of courtyards, terraces and extensional playing spaces. These connect to each other by means of double heights, interior balconies, ramps and stairs, thus maximizing the points of exchange and control between users and members of the educational establishment. This allows micro-landscapes to be formed within the ensemble, adds diversity to curricular proposals and enables different pedagogical appropriations.

The kindergarten is developed in the first two modules and the social welfare centre is developed in third building. This guarantee that the most public uses are directly related to the main access, while the private spaces (bedrooms) are related to the park.

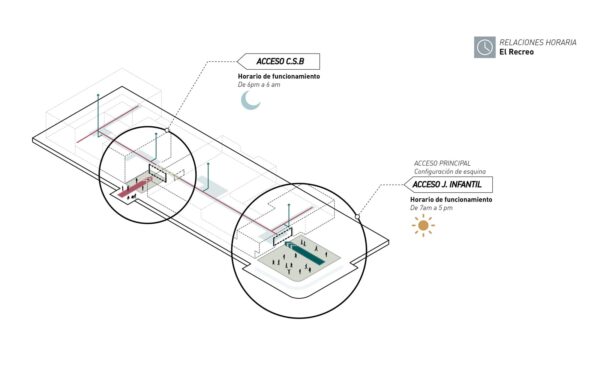

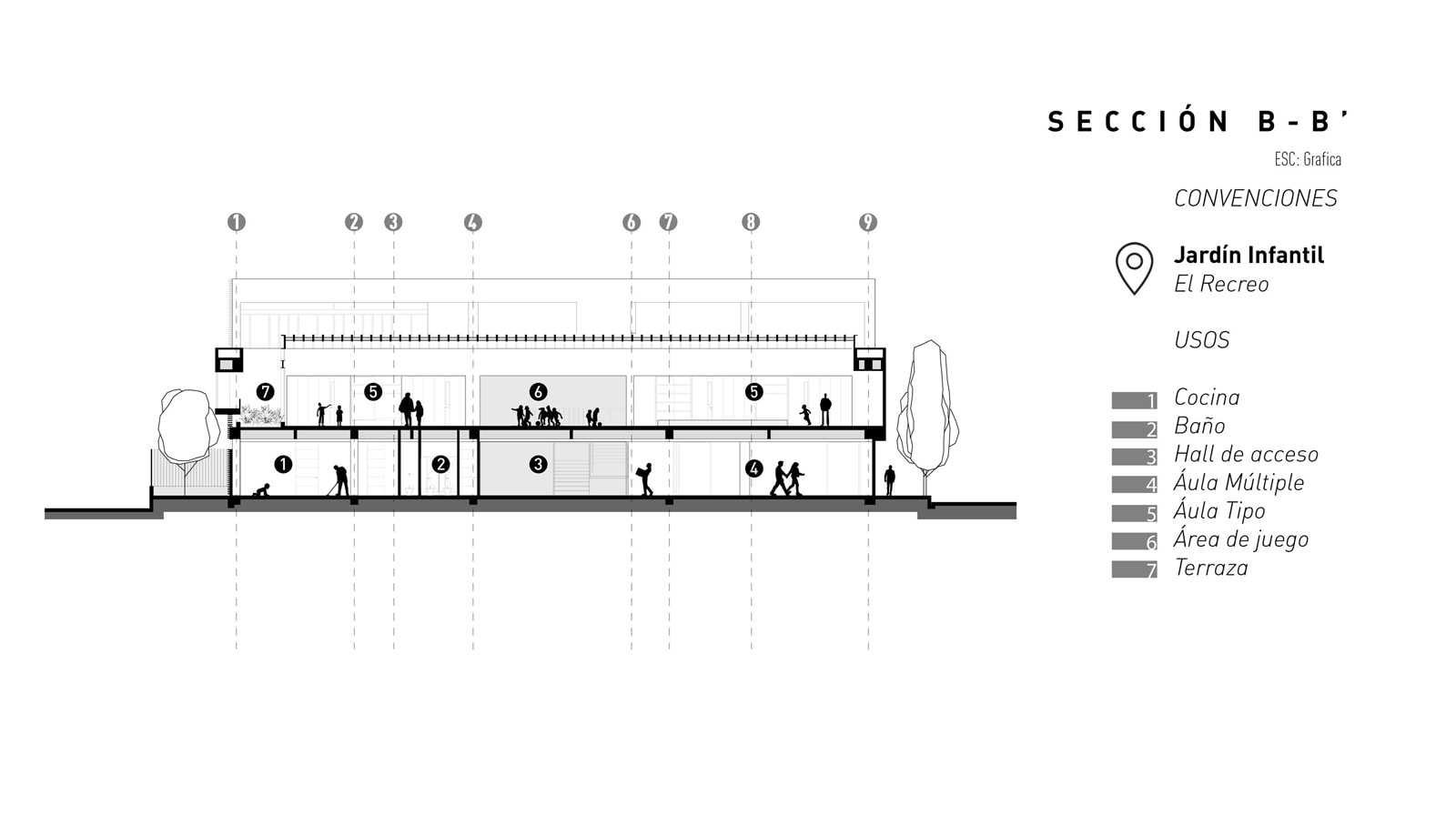

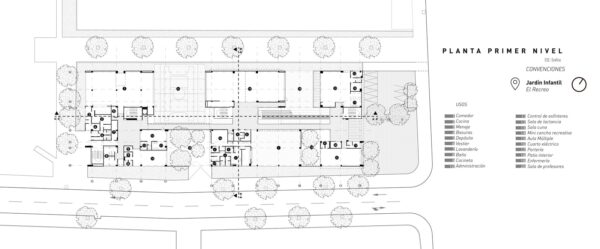

The public areas and basic services (multiple classrooms, kitchens, dining rooms, etc.) are arranged on the first floor of the building with the possibility of opening up to the courtyards and the public space. This way, these areas can be used at extracurricular hours for various purposes, supporting activities that strengthen the relationship of the welfare centre and the community. The nursery and walking areas are also located on the first level, since they have priority for evacuation as they belong to the younger users of the kindergarten.

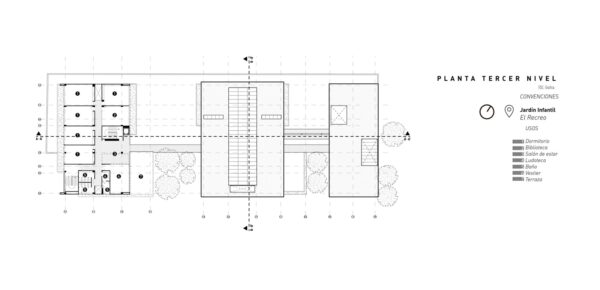

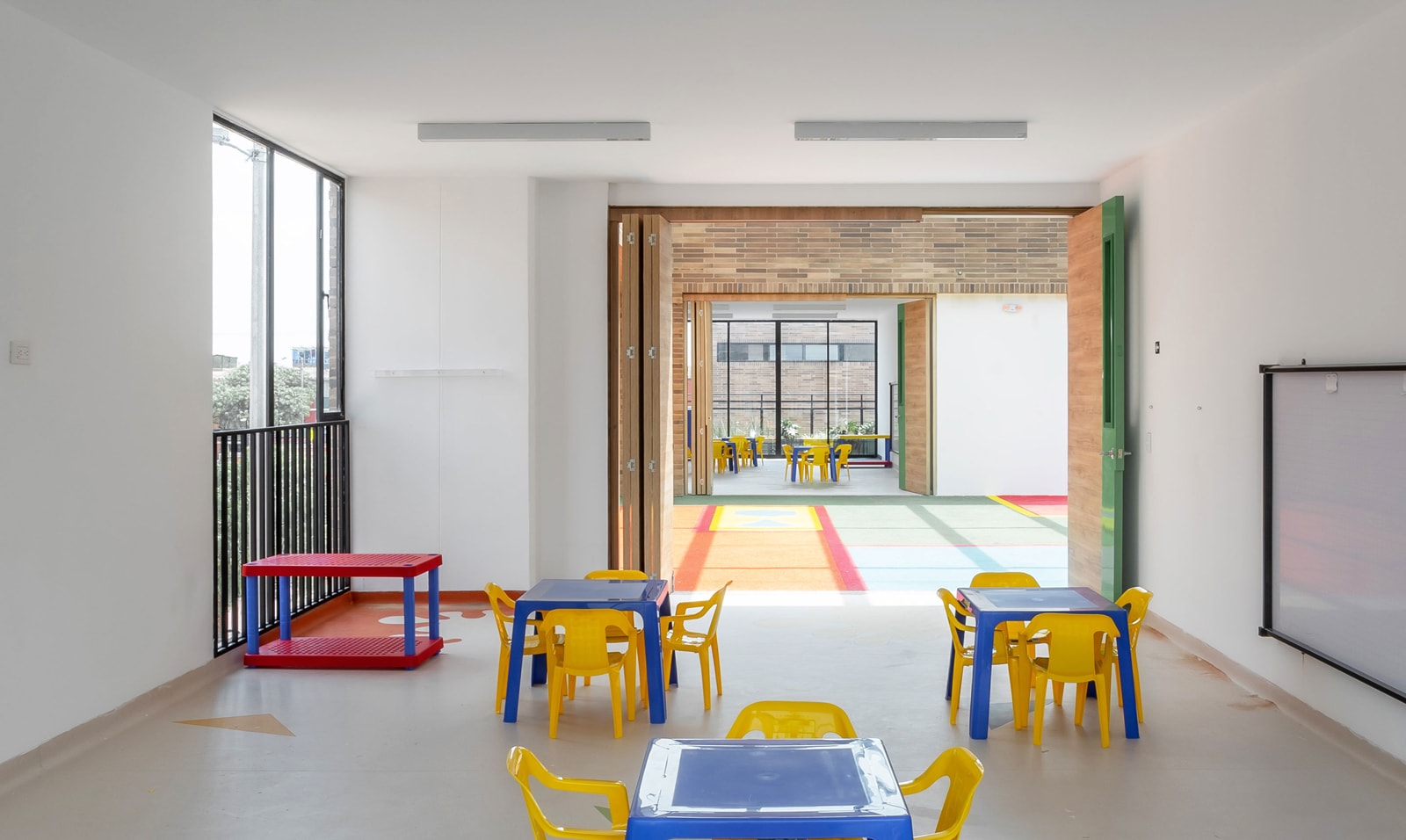

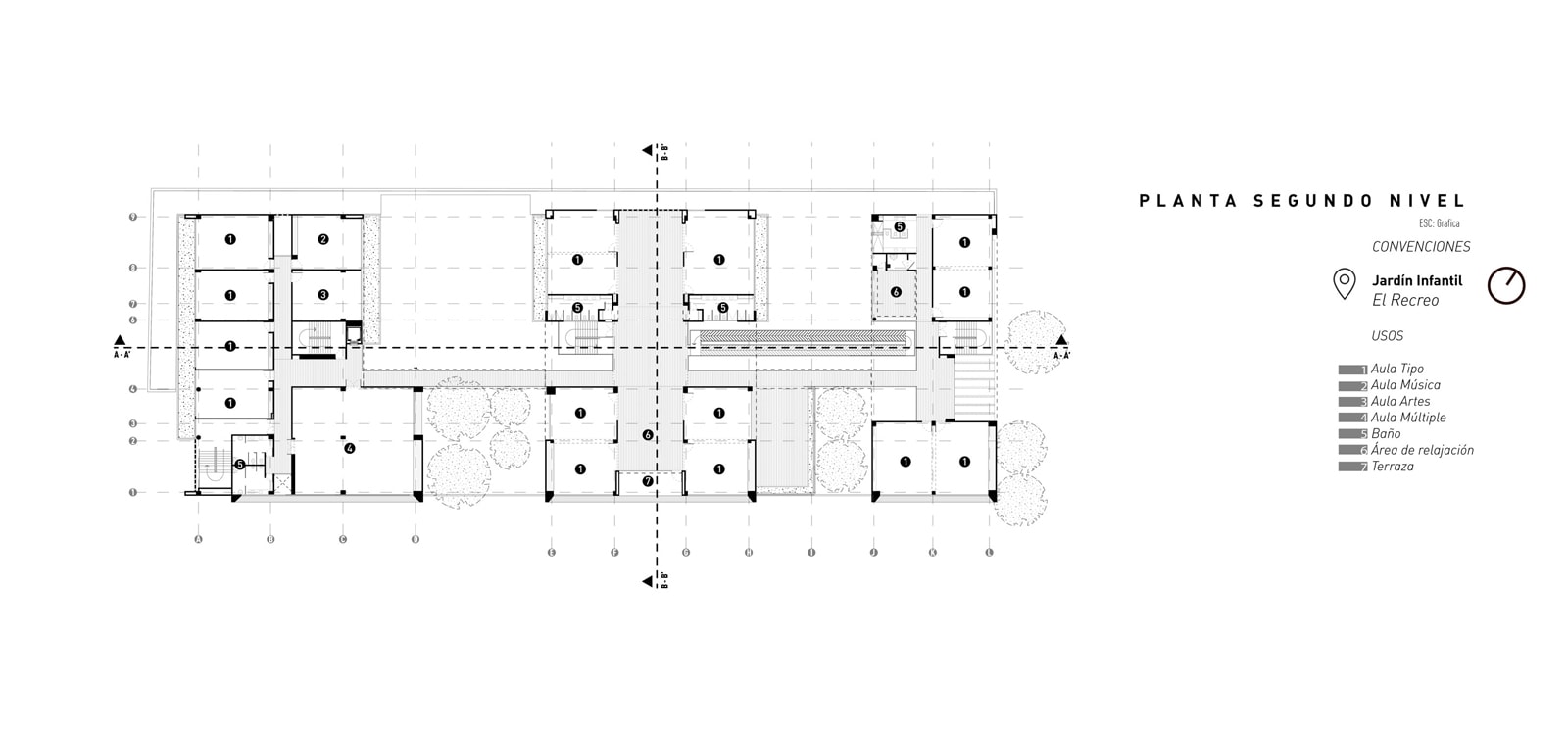

The basic educational environments (classrooms) are developed on the second floor as open and flexible areas, in which light and permeable materials are used as a resource for integration and spatial continuity. Each zone is linked to the next one in a fluid way using sliding doors and folding doors that multiply the possible uses and connections with the exterior. The bedrooms of the welfare centre, that correspond to the spaces of longer stay, were strategically located within the training complex on the third floor, in direct relation to the park located on the west side of the project.

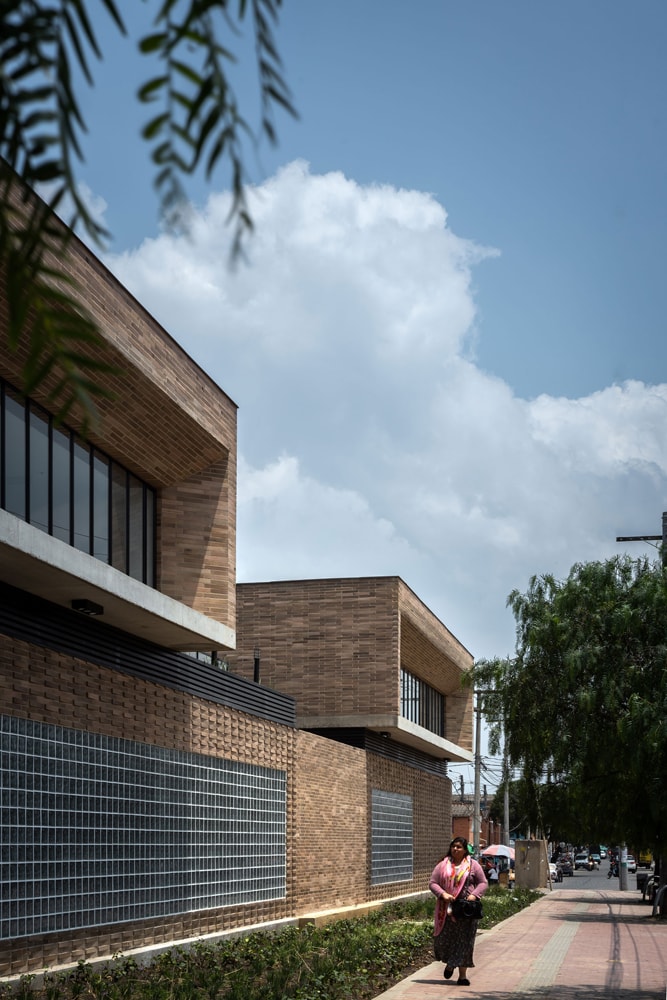

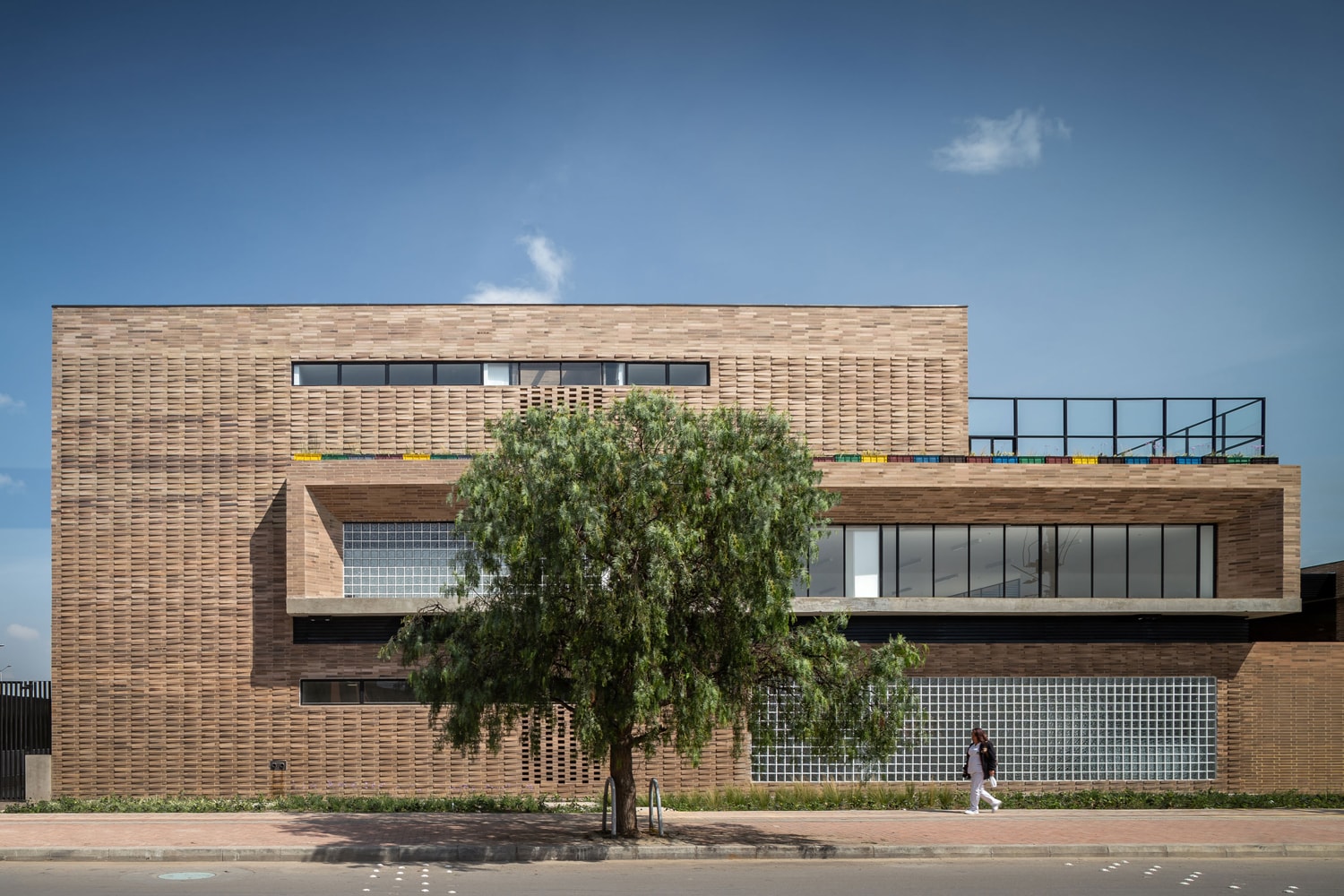

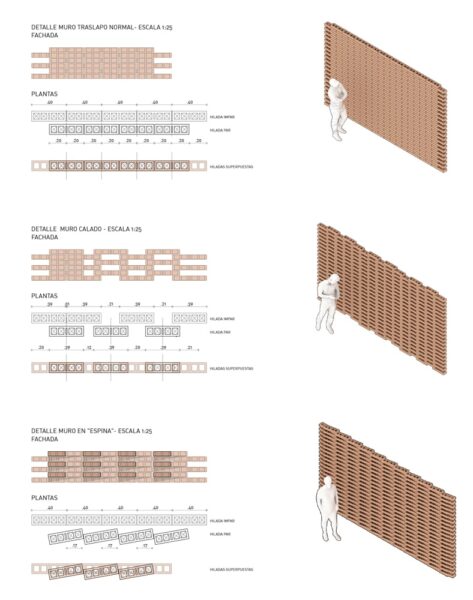

The construction is austere, responsible and in accordance with the location. It uses simple materials and techniques typical of the area that guarantee its appropriation and stability over time.

El Recreo kindergarten seeks to respond to the context in a coherent and generous way, contributing to the urban structure in which it is located, promoting active and collaborative pedagogical relationships at different scales through flexible spaces connected to outdoor areas and social areas that promote learning by means of encounter.

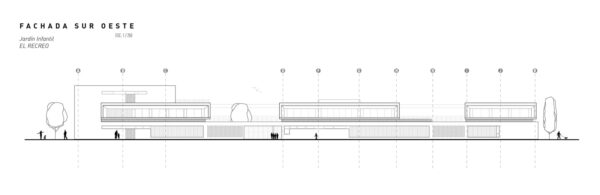

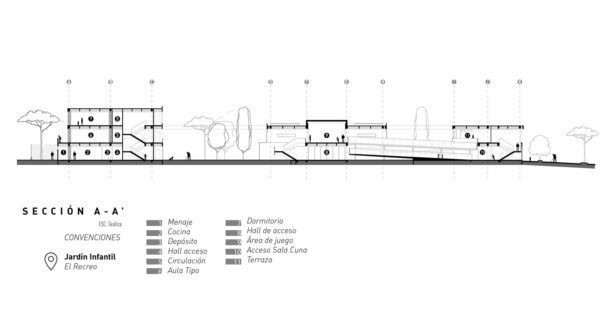

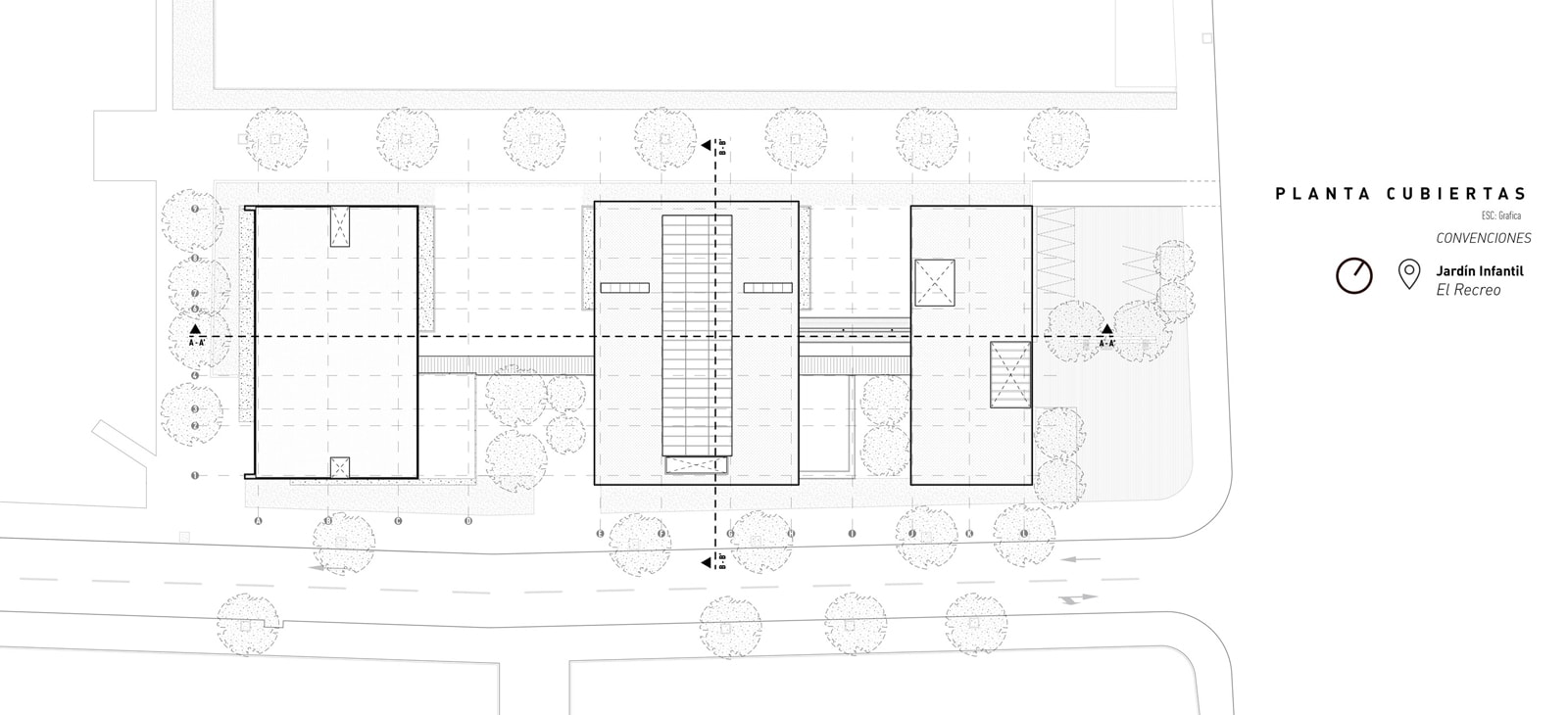

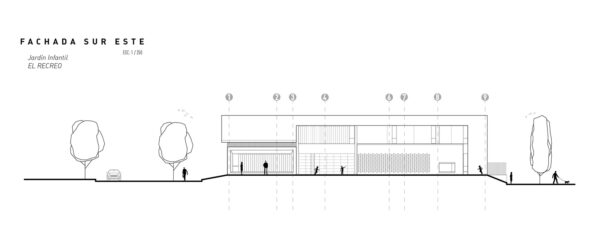

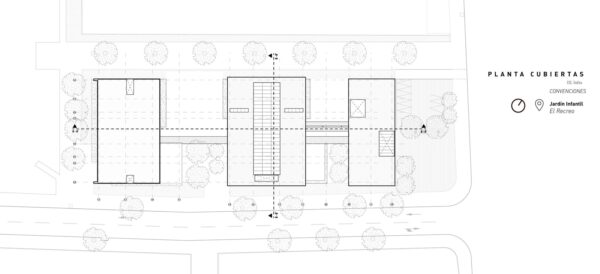

Planimetry
